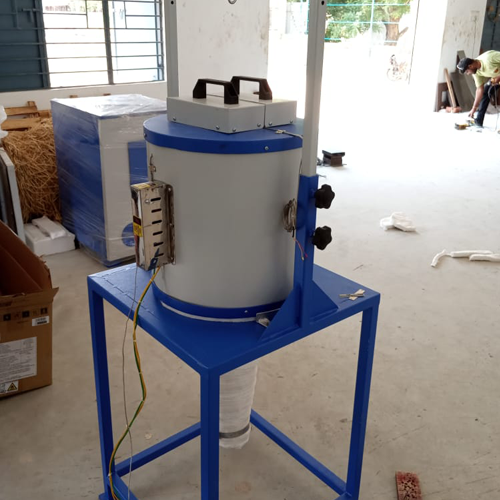

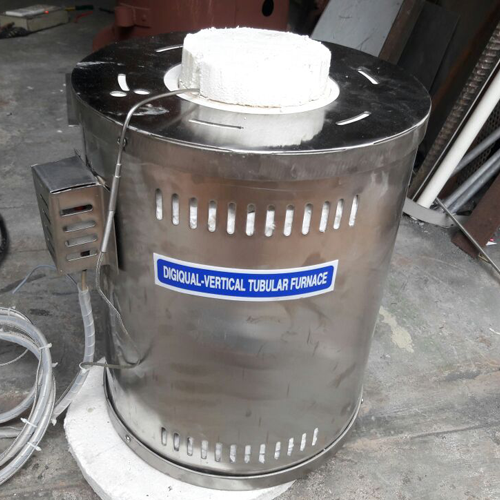

Digiqual Manufacturers Vertical Tubular Furnace in Different Dimensions & Temp Range up to 1400 * C. Outer Casing Fabrication Made out of SS 304 , 2mm Sheaths & of Double chamber . In Vertical Tubular Furnace Outer Chamber is Fabricated for Air Gap & to reduce Skin Temperature. Furnace Tube is of High Quality Alumina Ceramic Tube. In Vertical Tubular Furnace Heating Elements are Kanthal A1 & Silicon Carbide.
Control Panel will be Digital PID Temperature Program Controller with 16 Segments Integrated with Thyristor Control Drive for High Accuracy & Ramping Function. Control Accuracy : + / – 0.1 * C
Price range: ₹114,000.00 through ₹175,000.00
Optional :
| Description | Model | Inner Chamber Dimension in mm (D) x (L) |
| DQ-TF-01 | 50(D)x350(L) | |
| DQ-TF-02 | 75(D)x600(L) | |
| DQ-TF-03 | 110(D)x600(L) | |
| Thermocouple | K Type | |
| Heating Element | Silicon Carbide – SiC | |
| Temperature Range | Max Temp.Range 1400°C, Operating Temp.Range 1300°C | |
| Controller | Digital Pid Temperature Controller | |
Digiqual Systems – Trusted since 1991, delivering quality laboratory and industrial equipment with innovation, precision, reliability, and timely service.
