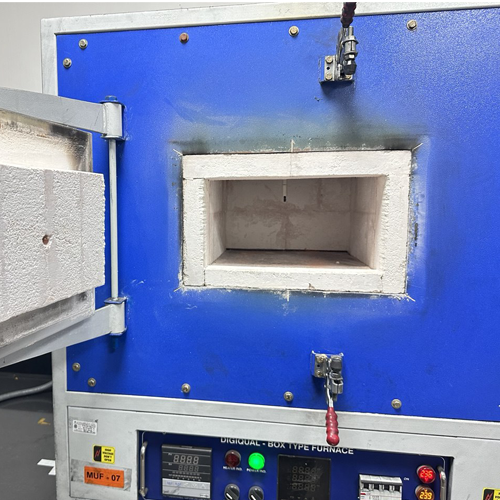

Digiqual 1400°C Muffle Furnace Construction comprises of double walled chamber, outer made of cold rolled mild steel sheets and finished in powder coating paint. Inner chamber formed by High temperature withstand zirconia vacuum board followed by ceramic fibre blankets on all the sides. Double walled door mounted on heavy-duty hinges in the front is provided with effective locking arrangements. Optionally, the door can be provided with door limit switch to cut off the power supply whenever the door is opened and to restart when the door is closed.
Price range: ₹165,000.00 through ₹250,000.00
The High Temperature Furnace 1400°C / Muffle Furnace will be heated by means of HIGH QUALITY SILICON CARBIDE RODS. Temperature is maintained and controlled by Digital PID temperature controller with SSR output. Alternatively a Microprocessor based PID Controller auto tuned with Thyristor control Device working in conjunction with Pt/Pt/Rh 13% Thermocouple.
High Temperature Furnace 1400°C / Muffle Furnace Control Panel:
Compact control panel accommodating the following will be provided along with the furnace:
| Description | Model | Capacity | Inner Chamber Dimension in mm |
| DQ-HTMF-01 | 4 L | 125x125x250 | |
| DQ-HTMF-02 | 7 L | 150x150x300 | |
| DQ-HTMF-03 | 12 L | 200x200x300 | |
| DQ-HTMF-04 | 27 L | 300x300x300 | |
| Thermocouple | K Type | ||
| Heating Element | Silicon Carbide – SiC Rods | ||
| Temperature Range | Max Temp.Range 1400°C, Operating Temp.Range 1300°C | ||
| Controller | Program Pid Temperature Controller
8×2-16 Segments with Thyristor |
||
| Installation | Silicon Carbide and Installation Charges Cost Extra | ||
Digiqual Systems – Trusted since 1991, delivering quality laboratory and industrial equipment with innovation, precision, reliability, and timely service.
