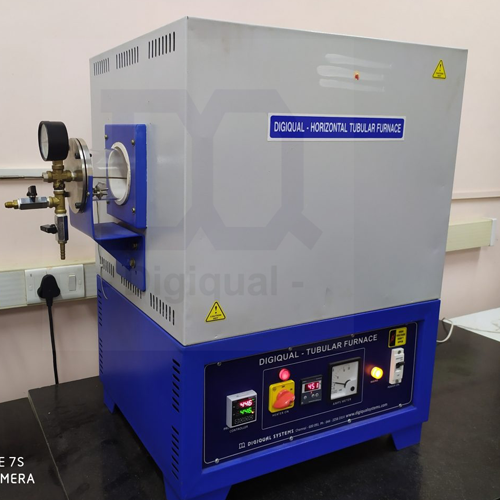

Digiqual Systems Manufacturers Horizontal Tubular Furnace 1100* C, Vacuum Chemical Vapor Deposition (CVD) Tubular Furnace, Horizontal Vacuum Tubular Furnace with Gas Fittings & Couplings which can Achieve 10 x – 3 Vacuum.
Horizontal Tubular Furnace is fabricated out of Double walled chamber; outer chamber made of cold rolled mild steel sheets and finished in powder coating or Complete Fabrication in Stainless Steel 304 Material. The Inner chamber is formed by high Alumina tube capable of withstanding temperature up to 1200 °C. The tube will have one end closed or both ends opened as per the requirement of customers. Insulation with high-density superior quality ceramic fibre blanket.
Price range: ₹98,000.00 through ₹148,000.00
The Horizontal Vacuum Tubular Furnace s heated by Kanthal heating elements or by Silicon Carbide Heating Elements Depending on the Model whether it is 1100* C or 1400 * C. The temperature is controlled Digital PID Controller with S.S.R output. The sensor will be Cr/Al type thermocouple. The size of the tubes available are 40 to 150 mm ID and Length of 350 mm to 1000 mm. Suitable SS 304 Fittings are provided for Gas Inlet / Outlet, Vacuum Creation & other purposes with KF Couplings & Clamps. Horizontal Vacuum Tubular Furnace Fittings are Designed in Such a way that it Creates 10 x -3 Vacuum.
| Description | Model | Inner Chamber Dimension in mm |
| DQ-TF-01 | 50(D)x350(L) | |
| DQ-TF-02 | 75(D)x600(L) | |
| DQ-TF-03 | 110(D)x600(L) | |
| Thermocouple | K Type | |
| Heating Element | Kanthal Wire A1 | |
| Temperature Range | Max Temp.Range 1100°C, Operating Temp.Range 1000°C | |
| Controller | Digital Program Pid Temperature Controller with Ramp & Soak | |
